MORE DETAILS / SPECIFICATIONS
FROM THE 1978 IBANEZ CATALOG: IBANEZ PF400 PERFORMER SERIES FEATURES:

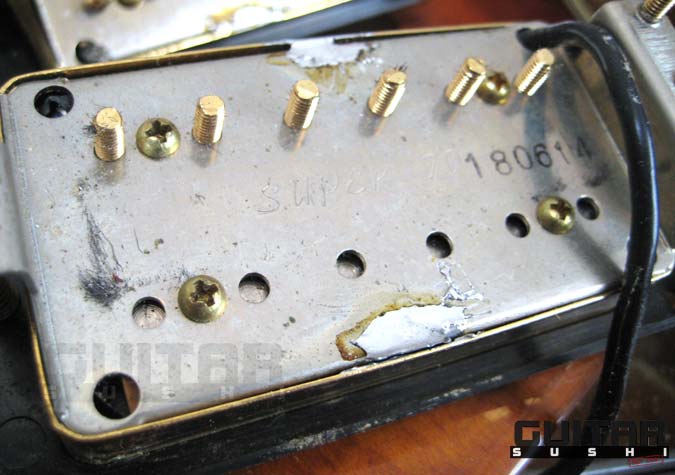

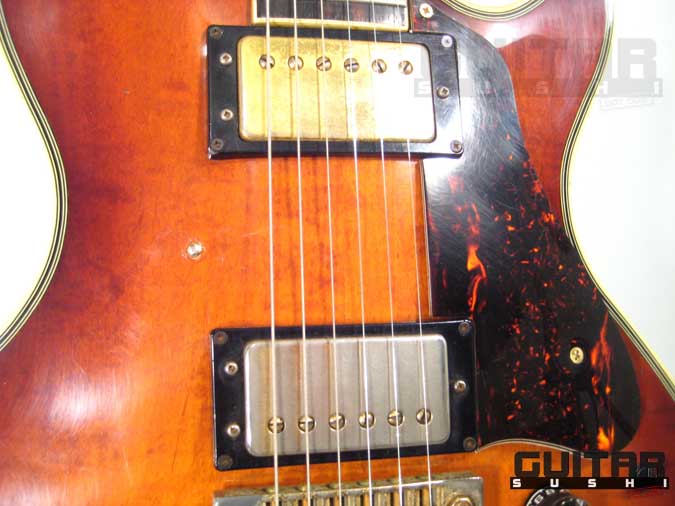

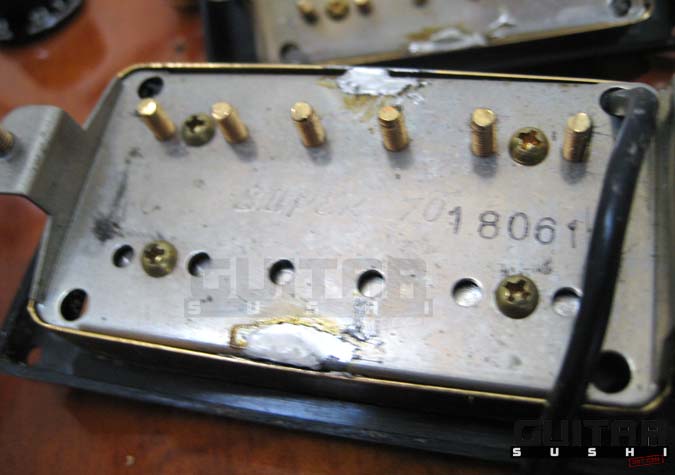

Super 70's Pickups - All Performer Series guitars feature the famous Ibanez Super 70 pickups. Super 70's are loud, clean and rich in harmonics and offer you a sound and versatility not found in other humbuckings. The 3-point height adjustment of the mounting ring allows you to set the pickup exactly parallel to the strings for the best response.
Custom Taper Pots: The pickups are controlled by Ibanez custom taper potentiometers for smooth, even response and precise control. The taper of these pots is precisely calculated to the roll-off curve of guitar pickups. There is no standard available potentiometer than can match their performance.

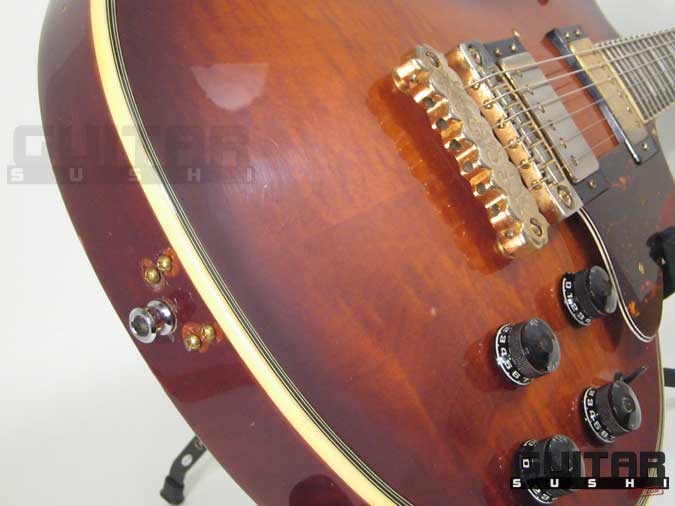

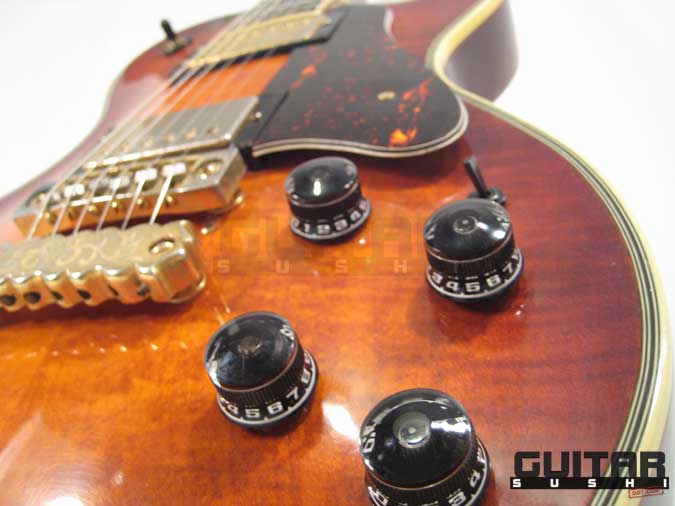

Sure-Grip Knobs: The Ibanez Sure-Grip knobs feature a special contour and a ribbed rubber insert for no-slip performance even the going gets hot and sweaty. Most guitar knobs are either too large or too small, but the Sure-Grip knobs are "human engineered" to the most comfortable size for most players.

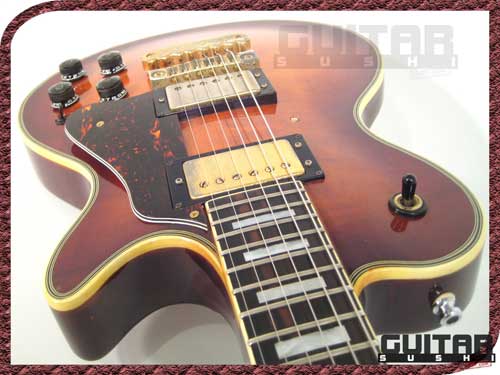

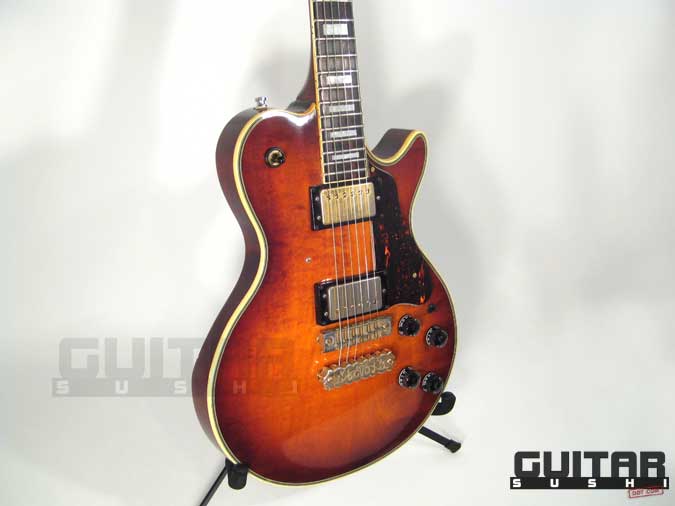

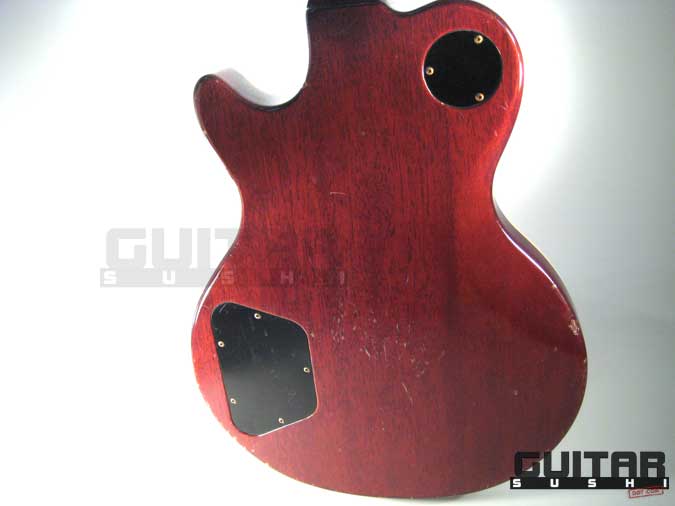

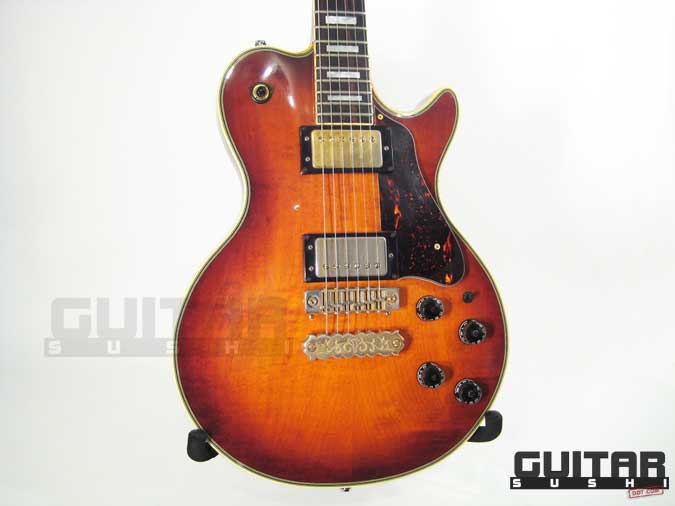

Solid Construction: The PF400 is constructed of the finest guitar making woods available anywhere. The solid mahogany body is set off with a book-matched solid maple carved top. Combined with the rock maple neck, this construction gives you the best sustain and brilliance with a full and warm tone.

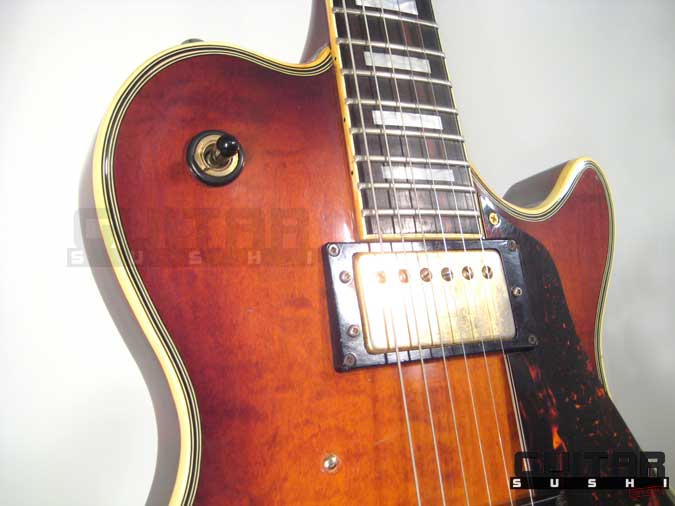

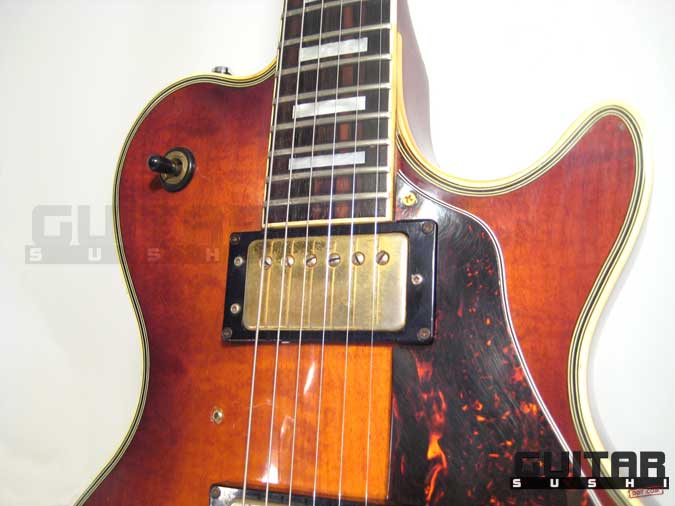

Ibanez Tri-Sound: Among the other many fine features of the PF400 is the special design Super 70 Tri-Sound pickup mounted in the fingerboard position. Controlled by a mini three position switch, this pickup can be used as either a standard humbucking, single coil, or reverse phased twin coil pickup. This added versatility pots a world of tones right at your fingertips.
At the top of the line...the PF400 gives you more features, finer craftsmanship, and better design than other instruments costing hundreds of dollars more.
OUR 1978 IBANEZ PF400 PERFORMER SERIES vs. STANDARD 1978 PF100 PERFORMER SERIES
|
|
PF400
|
PF100
|
Color |
Antique Violin |
Antique Violin |
Body |
Carved maple top on mahogany body bound with 7-layer black & white binding |
Birch top on mahogany body bound with single layer cream binding. |

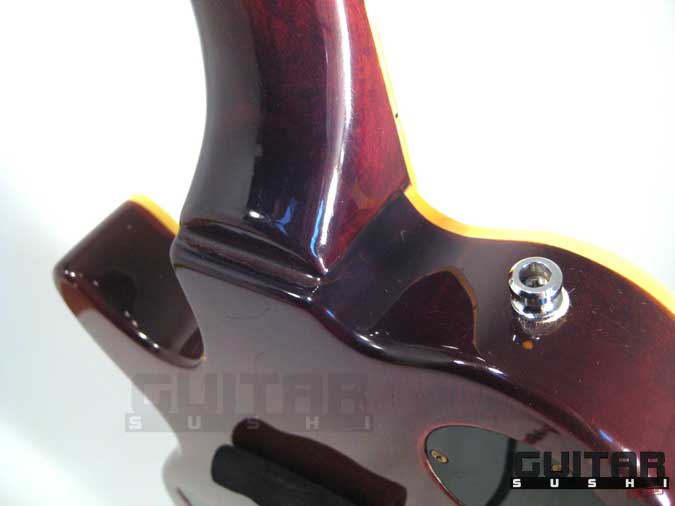

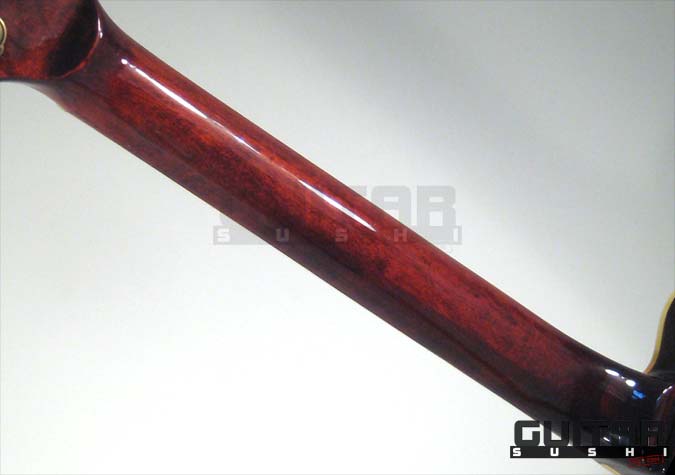

Neck |

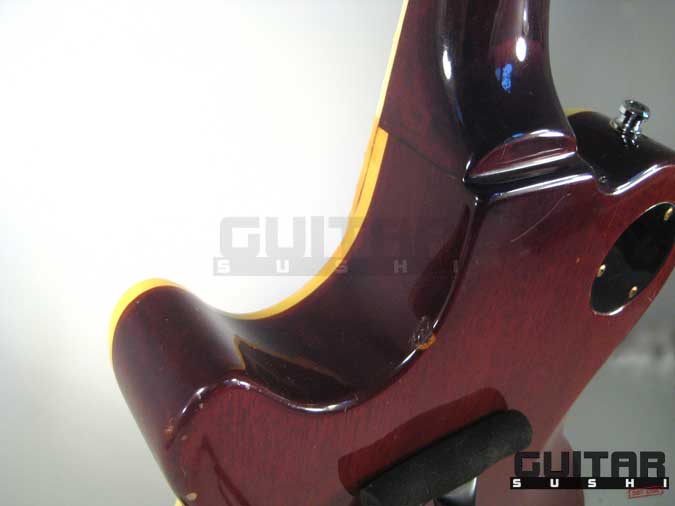

Laminated rock maple; built-in (set neck); 22 large VelveTouch frets |
Laminated rock maple, detachable (bolt-on) 22 large frets |

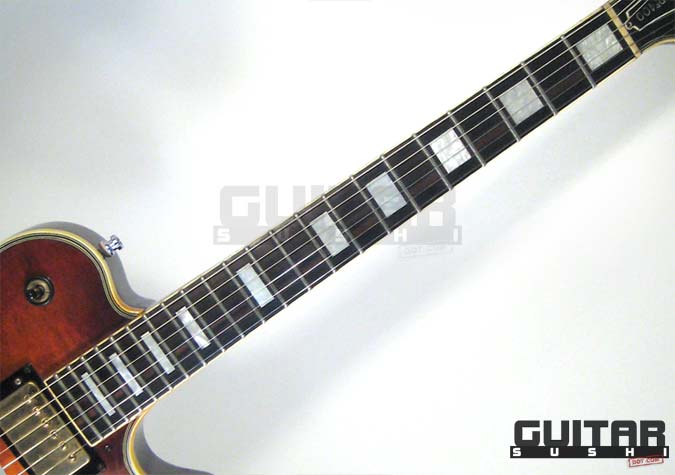

Fingerboard/ Fretboard |

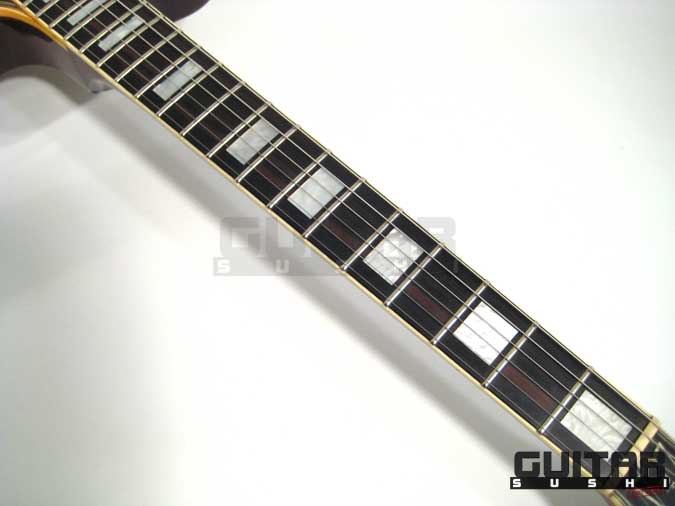

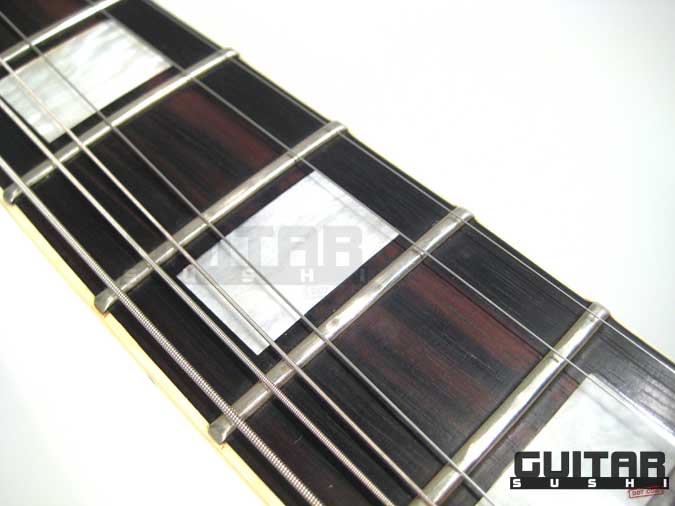

Polished Ebony with pearloid block inlays |
Ebonized rosewood with pearloid dot inlays |
Pickups |
One Super 70 and one Tri-Sound Super 70-bass pickup, selectable either as humbucking, single coil or reverse phased (series aiding) twin coil pickup |
Two Ibanez Super 70 humbuckings |
Bridge |

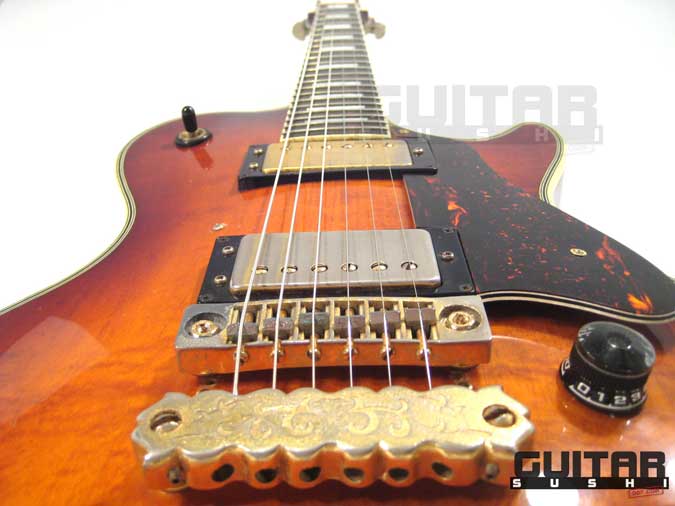

Ibanez Gibraltar adjustable lock down bridge |
Ibanez Gibraltar adjustable lock down bridge |
Tailpiece |
Ibanez "Fancy" Tailpiece |
Ibanez Quik-Change slotted tailpiece |
Controls |
Individual volume and tone, 3 position pickup selector |
Individual volume and tone, 3 position pickup selector |
Hardware |
Heavy gold plated |
Bright Chrome Plated |

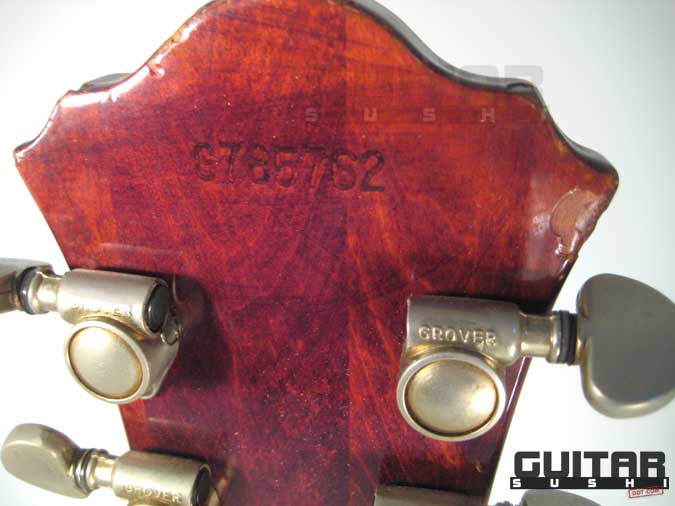

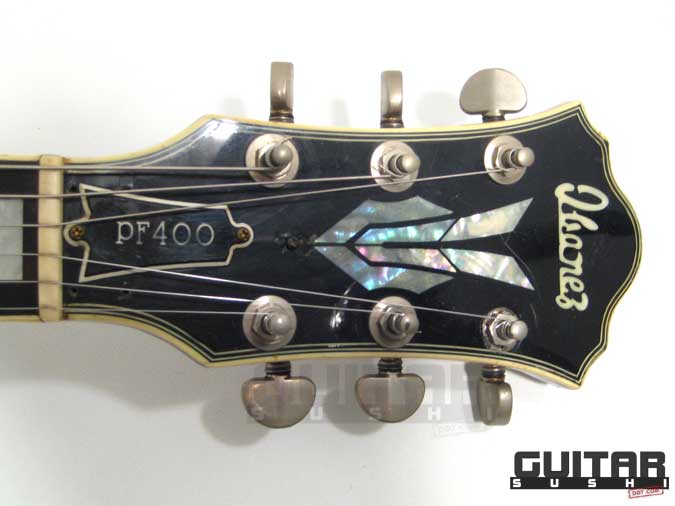

Machine Heads/ Tuning Pegs |

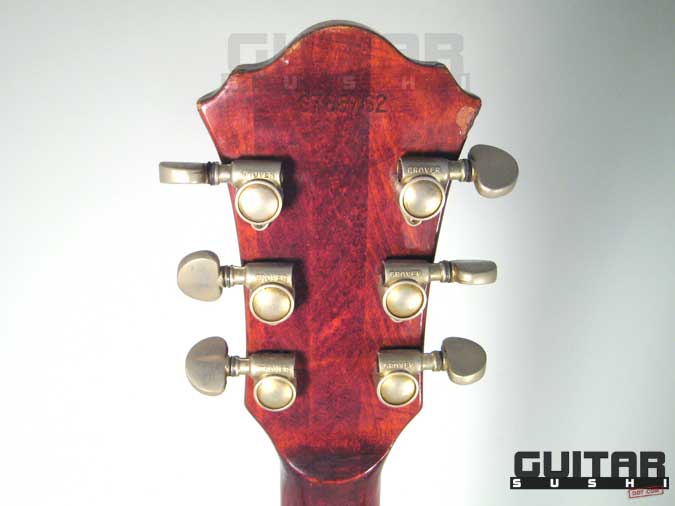

Grover |
Ibanez Smooth Tuner II |
